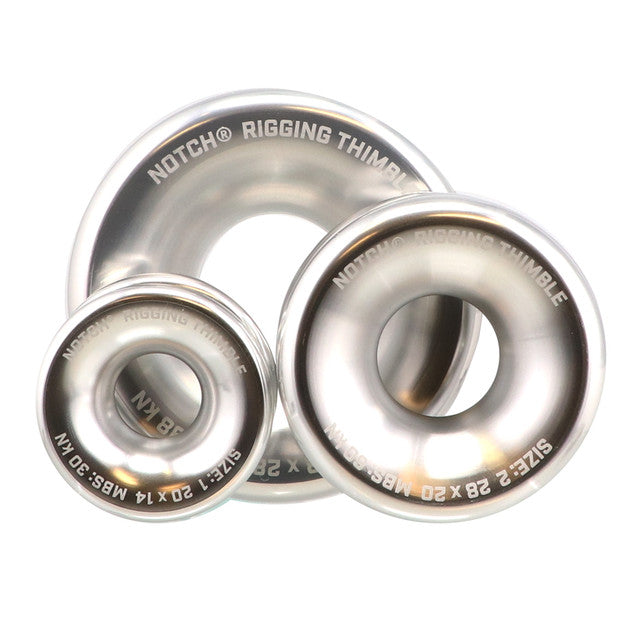

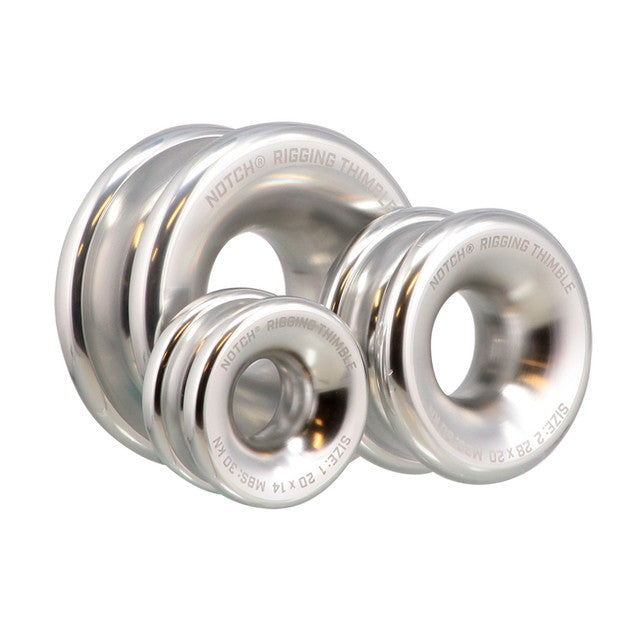

NOTCH RIGGING THIMBLES
SKU:40465
- A few left in stock!
Notch Rigging Thimbles were designed by arborists and built by engineers. They are purpose-built for the arboriculture industry, with improvements over the original marine products on the market. Splice them into a sling for use as a rigging point or redirect.
DETAILS
• Designed by arborists for arborists and built by engineers
• Minimum breaking strength tested in the worst case configuration scenario - and clearly marked on every thimble
• Wider rope groove to accommodate more appropriate sizes and types of rope for various sling configurations
• Bigger, gentler bend radius for running rope
• Non-anodized aluminum for extended life
• Interior diameter is specially sized in relation to the other Notch Rigging Thimbles for better retrieval and use with splices
• Effectively unbreakable in standard configurations on our 25,000lb horizontal proof test machine
• Lifetime wear guarantee - If at any point in time your rigging thimble shows a "groove" from normal use, send it back to us and we'll replace it for free. (Does not cover dents, scratches, or the cost of splicing)
Size 1
- MBS: 30kN
- Sling Diameter: 20mm
- Rope Capacity: Up to 14mm

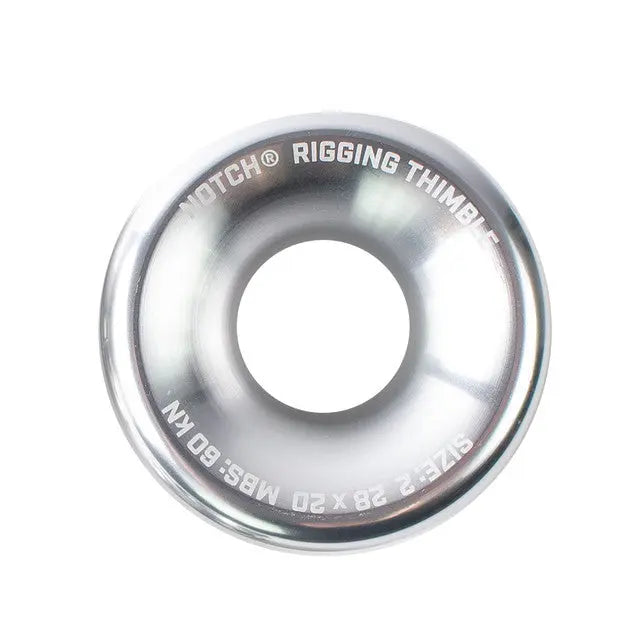

Size 2
- MBS: 60kN
- Sling Diameter: 28mm
- Rope Capacity: Up to 20mm

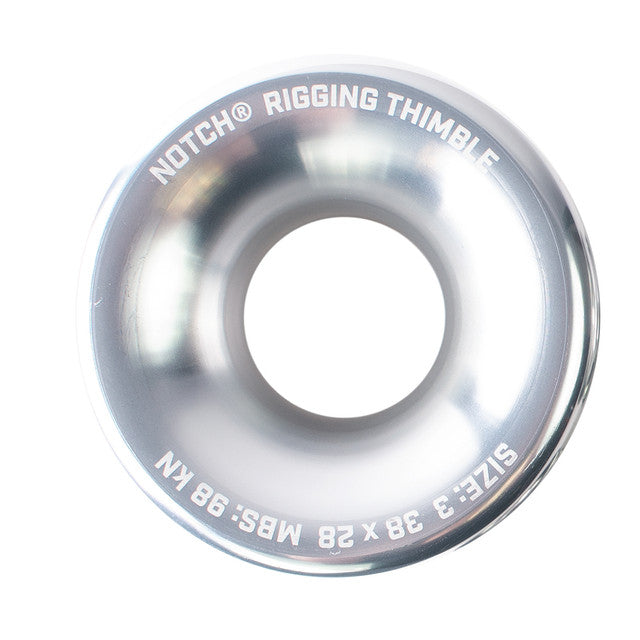

Size 3
- MBS: 98kN
- Sling Diameter: 38mm
- Rope Capacity: Up to 28mm
