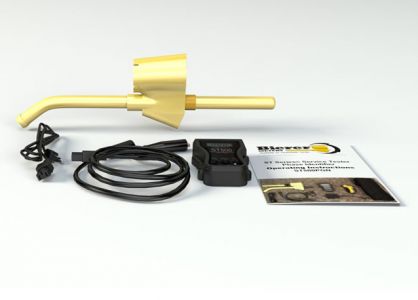

Bierer 500 Amp Service Tester - ST500PGN

The ST500PGN puts a high magnitude pulse between the neutral/hotleg or hotleg/hotleg for any secondary service(120V,208,277,480V). It cannot be fooled by telephone and cable television bonding often missed by continuous loading devices. 500 Amps.

The ST500PGN can perform the following functions:

• Identify bad conductor(s) from the transformer to the meter base
• Indicate integrity of neutral conductor to prevent excessive house-ground currents
• Locate both hot legs and neutral at the pedestal and/or transformer blocks.
• Locate bad connectors on overhead spans
• Identify de-energized URD Primary cable in a manhole or ditch

A 6-month pilot project was conducted at a Major Investor owned Utility where the ST500 was found to save the Utility time and money while improving their Customer Satisfaction Rating.

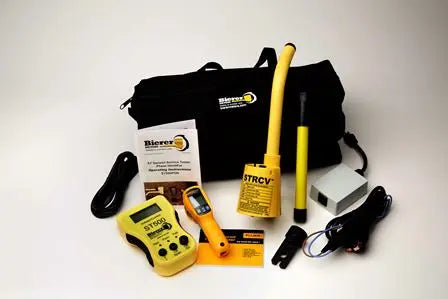

Includes:

• 500 amp service tester
• Receiver probe
• Laser pyrometer
• Current limiter adapter
• Alligator clip cable
• Standard wall socket cable
• 10 inch handle
• Manual
• Standard bag
